Argo CD

Argo CD is a declarative, GitOps continuous delivery tool for Kubernetes.

Deploying argo-cd https://argoproj.github.io/argo-cd/getting_started/

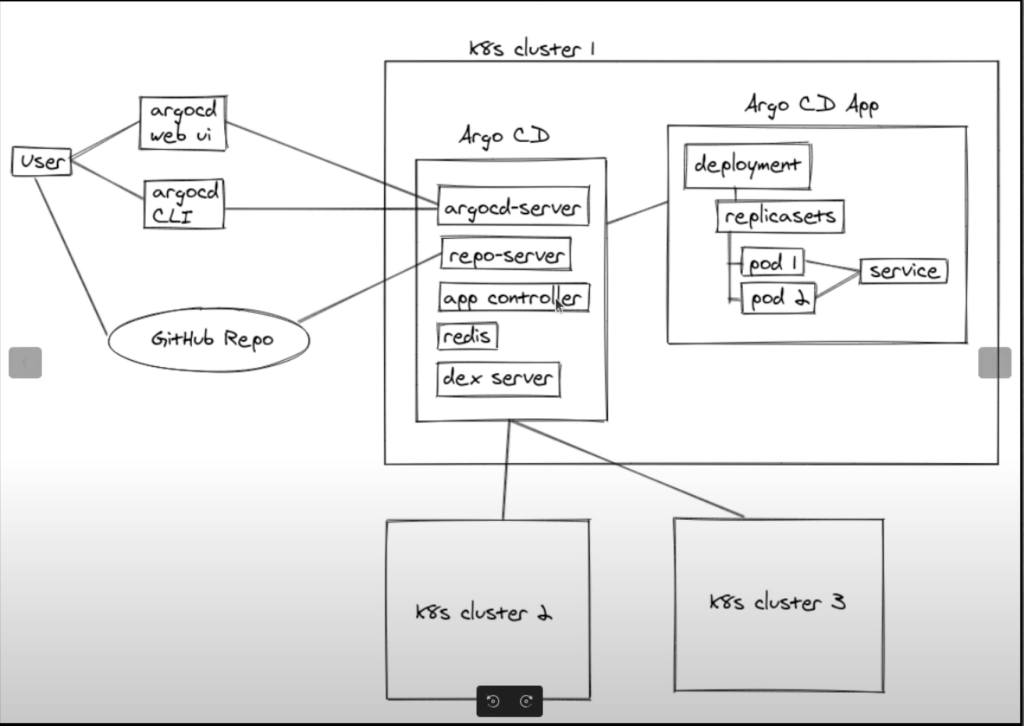

Argo components

Lets deploy Argo-Cd in my kubernetes clusters

check the latest tag : https://github.com/argoproj/argo-cd

Ex: https://github.com/argoproj/argo-cd/releases/tag/v2.0.1

I have my local minikube setup already done.

|  ❭ minikube start

😄 minikube v1.20.0 on Darwin 10.15.4
🐳 Preparing Kubernetes v1.20.2 on Docker 20.10.6 …
🏄 Done! kubectl is now configured to use “minikube” cluster and “default” namespace by default

List existing name-spaces

|  ❭ kubens

default
ingress-nginx
kube-node-lease
kube-public
kube-system
kubernetes-dashboard
my-namespace

|  ❭ kubectl create namespace argocd

namespace/argocd created

|  ❭ kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/v2.0.1/manifests/install.yaml

customresourcedefinition.apiextensions.k8s.io/applications.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/appprojects.argoproj.io created
serviceaccount/argocd-application-controller created
serviceaccount/argocd-dex-server created
serviceaccount/argocd-redis created
serviceaccount/argocd-server created
role.rbac.authorization.k8s.io/argocd-application-controller created
role.rbac.authorization.k8s.io/argocd-dex-server created
role.rbac.authorization.k8s.io/argocd-redis created
role.rbac.authorization.k8s.io/argocd-server created
clusterrole.rbac.authorization.k8s.io/argocd-application-controller created
clusterrole.rbac.authorization.k8s.io/argocd-server created
rolebinding.rbac.authorization.k8s.io/argocd-application-controller created
rolebinding.rbac.authorization.k8s.io/argocd-dex-server created
rolebinding.rbac.authorization.k8s.io/argocd-redis created
rolebinding.rbac.authorization.k8s.io/argocd-server created
clusterrolebinding.rbac.authorization.k8s.io/argocd-application-controller created
clusterrolebinding.rbac.authorization.k8s.io/argocd-server created
configmap/argocd-cm created
configmap/argocd-gpg-keys-cm created
configmap/argocd-rbac-cm created
configmap/argocd-ssh-known-hosts-cm created
configmap/argocd-tls-certs-cm created
secret/argocd-secret created
service/argocd-dex-server created
service/argocd-metrics created
service/argocd-redis created
service/argocd-repo-server created
service/argocd-server created
service/argocd-server-metrics created
deployment.apps/argocd-dex-server created
deployment.apps/argocd-redis created
deployment.apps/argocd-repo-server created
deployment.apps/argocd-server created
statefulset.apps/argocd-application-controller created

|  ❭ kubectl get all -n argocd

NAME READY STATUS RESTARTS AGE
pod/argocd-application-controller-0 1/1 Running 0 35s
pod/argocd-dex-server-66ff89cb7b-rxm6p 1/1 Running 0 35s
pod/argocd-redis-759b6bc7f4-gt2hf 1/1 Running 0 35s
pod/argocd-repo-server-84d58ff546-w6b4s 1/1 Running 0 35s
pod/argocd-server-7fd556c67c-9hh7b 1/1 Running 0 35s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/argocd-dex-server ClusterIP 10.100.46.122 <none> 5556/TCP,5557/TCP,5558/TCP 35s
service/argocd-metrics ClusterIP 10.96.148.16 <none> 8082/TCP 35s
service/argocd-redis ClusterIP 10.99.61.165 <none> 6379/TCP 35s
service/argocd-repo-server ClusterIP 10.103.32.177 <none> 8081/TCP,8084/TCP 35s
service/argocd-server ClusterIP 10.109.164.100 <none> 80/TCP,443/TCP 35s
service/argocd-server-metrics ClusterIP 10.110.96.118 <none> 8083/TCP 35s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/argocd-dex-server 1/1 1 1 35s
deployment.apps/argocd-redis 1/1 1 1 35s
deployment.apps/argocd-repo-server 1/1 1 1 35s
deployment.apps/argocd-server 1/1 1 1 35s
NAME DESIRED CURRENT READY AGE
replicaset.apps/argocd-dex-server-66ff89cb7b 1 1 1 35s
replicaset.apps/argocd-redis-759b6bc7f4 1 1 1 35s
replicaset.apps/argocd-repo-server-84d58ff546 1 1 1 35s
replicaset.apps/argocd-server-7fd556c67c 1 1 1 35s
NAME READY AGE
statefulset.apps/argocd-application-controller 1/1 35s

In order to access argo-cd UI, you can use ingress,loadbalancer , NodePort . I am going to use nodeport .

Ingress related steps can be found here https://argoproj.github.io/argo-cd/operator-manual/ingress

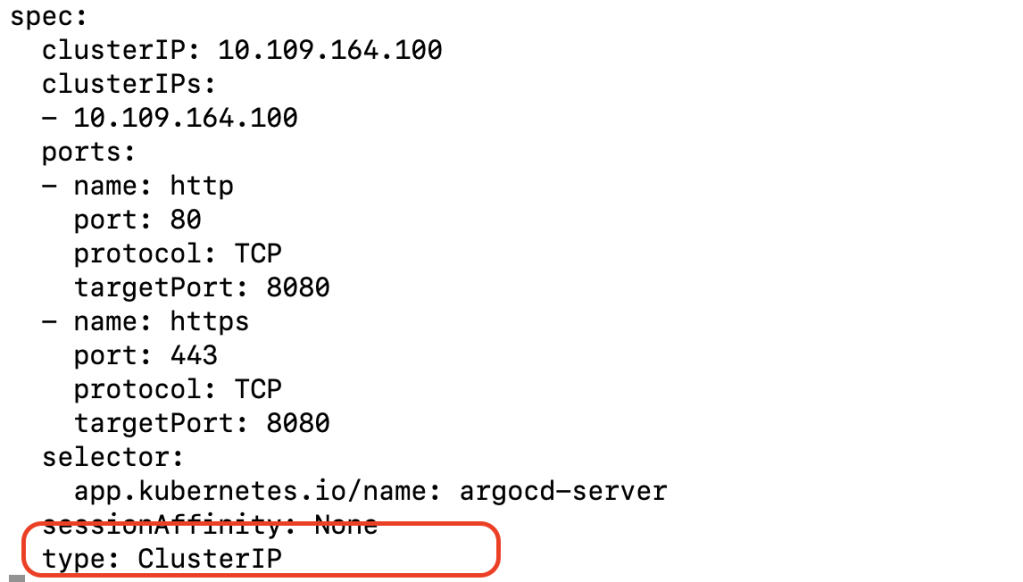

Just edit service type to Nodeport . using kubectl .

Or you can use Patch to update Type:

kubectl patch svc argocd-server -n argocd -p ‘{“spec”: {“type”: “NodePort”}}’

 ❭ kubectl edit svc argocd-server

|  ❭ kubectl edit svc argocd-server

service/argocd-server edited

|  ❭ kubectl get svc argocd-server

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

argocd-server NodePort 10.109.164.100 <none> 80:32171/TCP,443:31643/TCP 12h

check on which node pod is running . And access the argo-cd using node-port in that node

|  ❭ kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
argocd-application-controller-0 1/1 Running 4 12h 172.17.0.7 minikube
argocd-dex-server-66ff89cb7b-rxm6p 1/1 Running 1 12h 172.17.0.12 minikube
argocd-redis-759b6bc7f4-gt2hf 1/1 Running 1 12h 172.17.0.6 minikube
argocd-repo-server-84d58ff546-w6b4s 1/1 Running 4 12h 172.17.0.9 minikube
argocd-server-7fd556c67c-9hh7b 1/1 Running 2 12h 172.17.0.8 minikube

|  ❭ kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
minikube Ready control-plane,master 3d21h v1.20.2 192.168.64.2 Buildroot 2020.02.12 4.19.182 docker://20.10.6

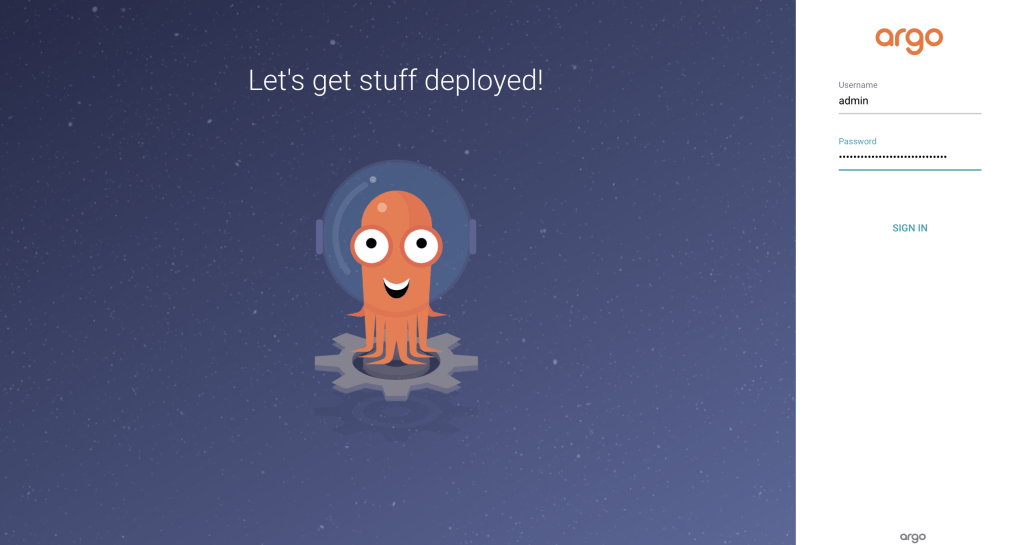

https://192.168.64.2:32171/

decode initial password:

|  ❭ kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath=”{.data.password}” | base64 -d
xnHJpKDKnkaKaQSP%
