Few required url to explore

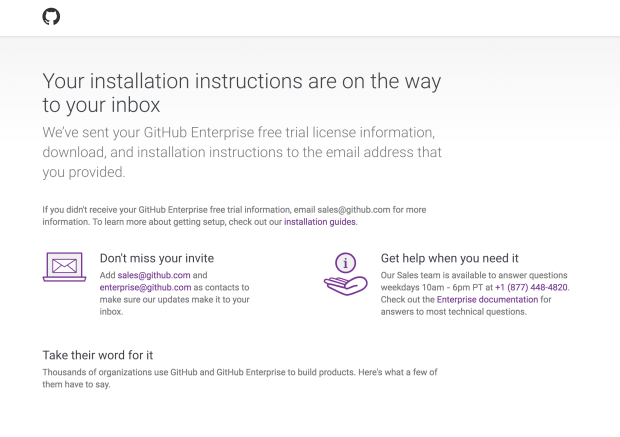

https://enterprise.github.com/trial

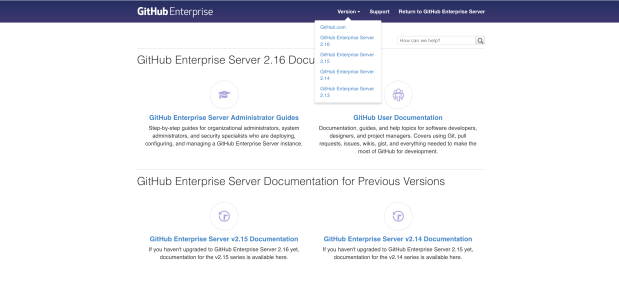

https://help.github.com/enterprise/2.16/
https://help.github.com/enterprise/2.16/admin/guides/installation/
If we are good at gcp cli utility , it make our work easier to browse things .

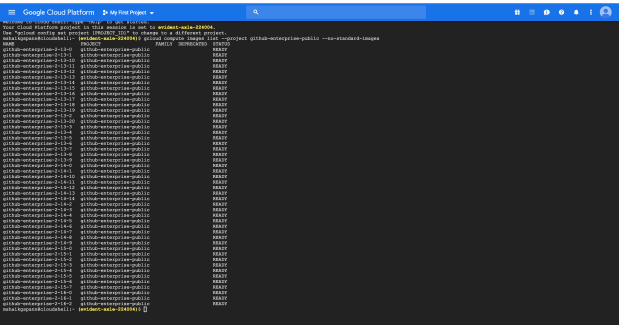

root@cloudshell:~$ gcloud compute images list –project github-enterprise-public –no-standard-images
NAME PROJECT FAMILY DEPRECATED STATUS
github-enterprise-2-14-4 github-enterprise-public READY
github-enterprise-2-14-5 github-enterprise-public READY
github-enterprise-2-14-6 github-enterprise-public READY
github-enterprise-2-14-7 github-enterprise-public READY
github-enterprise-2-14-8 github-enterprise-public READY
github-enterprise-2-14-9 github-enterprise-public READY
github-enterprise-2-15-0 github-enterprise-public READY
github-enterprise-2-15-1 github-enterprise-public READY
github-enterprise-2-15-2 github-enterprise-public READY
github-enterprise-2-15-3 github-enterprise-public READY
github-enterprise-2-15-4 github-enterprise-public READY
github-enterprise-2-15-5 github-enterprise-public READY
github-enterprise-2-15-6 github-enterprise-public READY
github-enterprise-2-15-7 github-enterprise-public READY
github-enterprise-2-16-0 github-enterprise-public READY
github-enterprise-2-16-1 github-enterprise-public READY
github-enterprise-2-16-2 github-enterprise-public READY
root@cloudshell:~$ gcloud compute networks create github-network –subnet-mode auto
Created [https://www.googleapis.com/compute/v1/projects/evident-axle-224004/global/networks/github-network].
NAME SUBNET_MODE BGP_ROUTING_MODE IPV4_RANGE GATEWAY_IPV4
github-network AUTO REGIONAL
Instances on this network will not be reachable until firewall rules
are created. As an example, you can allow all internal traffic between
instances as well as SSH, RDP, and ICMP by running:
$ gcloud compute firewall-rules create <FIREWALL_NAME> –network github-network –allow tcp,udp,icmp –source-ranges <IP_RANGE>
$ gcloud compute firewall-rules create <FIREWALL_NAME> –network github-network –allow tcp:22,tcp:3389,icmp
gcloud compute firewall-rules create github-rules –network github-network –allow tcp:22,tcp:25,tcp:80,tcp:122,udp:161,tcp:443,udp:1194,tcp:8080,tcp:8443,tcp:9418,icmp
Creating firewall…⠏Created [https://www.googleapis.com/compute/v1/projects/evident-axle-224004/global/firewalls/github-rules].
Creating firewall…done.
NAME NETWORK DIRECTION PRIORITY ALLOW DENY DISABLED
github-rules github-network INGRESS 1000 tcp:22,tcp:25,tcp:80,tcp:122,udp:161,tcp:443,udp:1194,tcp:8080,tcp:8443,tcp:9418,icmp False
ex: gcloud compute disks create DATA-DISK-NAME –size DATA-DISK-SIZE –type DATA-DISK-TYPE –zone ZONE
We are pretty sure what are different types of disks and zone we have to fulfil above command requirement
Will see what we in place , with the help of gcloud , believe me its awesome using glcoud cli .
gcloud compute zones list
NAME REGION STATUS NEXT_MAINTENANCE TURNDOWN_DATE
us-east1-b us-east1 UP
us-east1-c us-east1 UP
us-east1-d us-east1 UP
us-east4-c us-east4 UP
us-east4-b us-east4 UP
us-east4-a us-east4 UP
us-central1-c us-central1 UP
us-central1-a us-central1 UP
us-central1-f us-central1 UP
gcloud compute disk-types list
NAME ZONE VALID_DISK_SIZES
local-ssd europe-west3-b 375GB-375GB
pd-ssd europe-west3-b 10GB-65536GB
pd-standard europe-west3-b 10GB-65536GB
local-ssd europe-west3-c 375GB-375GB
pd-ssd europe-west3-c 10GB-65536GB
gcloud compute disks create guthubdisk –size 50GB –type pd-standard –zone us-east1-b
WARNING: You have selected a disk size of under [200GB]. This may result in poor I/O performance. For more information, see: https://developers.google.com/compute/docs/disks#performance.
Created [https://www.googleapis.com/compute/v1/projects/evident-axle-224004/zones/us-east1-b/disks/guthubdisk].
NAME ZONE SIZE_GB TYPE STATUS
guthubdisk us-east1-b 50 pd-standard READY
New disks are unformatted. You must format and mount a disk before it
can be used. You can find instructions on how to do this at:
https://cloud.google.com/compute/docs/disks/add-persistent-disk#formatting
gcloud compute instances create github-server –machine-type n1-standard-8 –image github-enterprise-2-16-0 –disk name=guthubdisk –metadata serial-port-enable=1 –zone us-east1-b –network github-network –image-project github-enterprise-public
Created [https://www.googleapis.com/compute/v1/projects/evident-axle-224004/zones/us-east1-b/instances/github-server].
NAME ZONE MACHINE_TYPE PREEMPTIBLE INTERNAL_IP EXTERNAL_IP ST

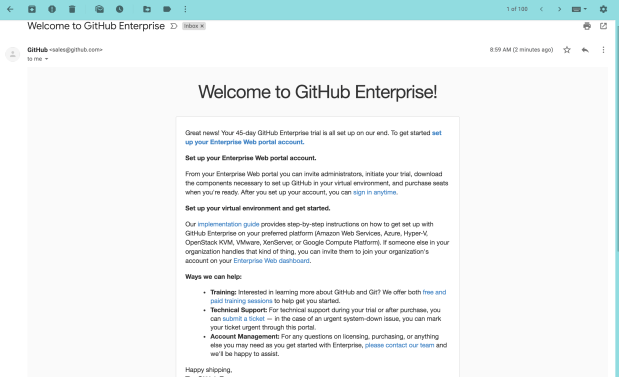

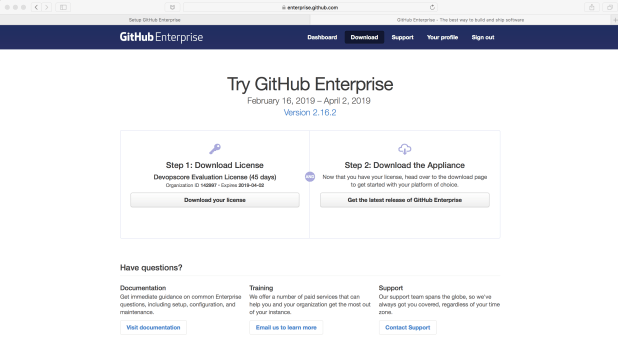

https://enterprise.github.com/download
As of now we will setting up 45 trail version .

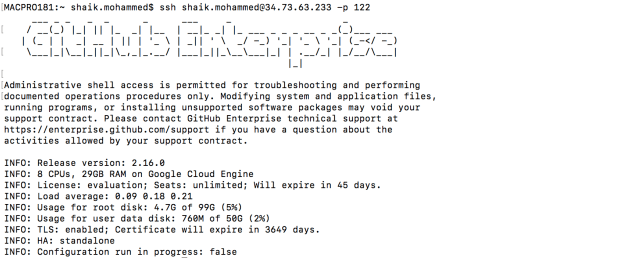

root@github-server:~# netstat -tulpn
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:9203 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 127.0.0.1:8500 0.0.0.0:* LISTEN 21895/consul
tcp 0 0 127.0.0.1:9204 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 0.0.0.0:8149 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 0.0.0.0:53 0.0.0.0:* LISTEN 18719/dnsmasq
tcp 0 0 127.0.0.1:8086 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 127.0.0.1:8087 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 0.0.0.0:3032 0.0.0.0:* LISTEN 29627/1)
tcp 0 0 127.0.0.1:8600 0.0.0.0:* LISTEN 21895/consul
tcp 0 0 0.0.0.0:1336 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:3033 0.0.0.0:* LISTEN 29627/1)
tcp 0 0 127.0.0.1:1337 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 0.0.0.0:3034 0.0.0.0:* LISTEN 29627/1)
tcp 0 0 0.0.0.0:3002 0.0.0.0:* LISTEN 28599/longpolld
tcp 0 0 0.0.0.0:8090 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:122 0.0.0.0:* LISTEN 3176/sshd
tcp 0 0 0.0.0.0:3035 0.0.0.0:* LISTEN 29627/1)
tcp 0 0 0.0.0.0:5115 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:8443 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 127.0.0.1:8091 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 0.0.0.0:3036 0.0.0.0:* LISTEN 29627/1)
tcp 0 0 0.0.0.0:3037 0.0.0.0:* LISTEN 29627/1)
tcp 0 0 127.0.0.1:8000 0.0.0.0:* LISTEN 22952/python
tcp 0 0 127.0.0.1:8002 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 127.0.0.1:4004 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 127.0.0.1:4005 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 127.0.0.1:4327 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:9000 0.0.0.0:* LISTEN 19953/git-daemon
tcp 0 0 127.0.0.1:4328 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:3050 0.0.0.0:* LISTEN 29188/codeload
tcp 0 0 0.0.0.0:9418 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 0.0.0.0:6379 0.0.0.0:* LISTEN 20415/redis-server
tcp 0 0 0.0.0.0:11211 0.0.0.0:* LISTEN 19555/memcached
tcp 0 0 127.0.0.1:3307 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 127.0.0.1:9100 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 127.0.0.1:6380 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 127.0.0.1:3308 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 0.0.0.0:9101 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:9102 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 0.0.0.0:8080 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 18818/haproxy
tcp 0 0 0.0.0.0:9105 0.0.0.0:* LISTEN 18958/nginx
tcp 0 0 127.0.0.1:9201 0.0.0.0:* LISTEN 18730/haproxy
tcp 0 0 127.0.0.1:8082 0.0.0.0:* LISTEN 18958/nginx
tcp6 0 0 :::18259 :::* LISTEN 29508/semiotic.bin
tcp6 0 0 :::9203 :::* LISTEN 18958/nginx
tcp6 0 0 :::9300 :::* LISTEN 19612/java
tcp6 0 0 ::1:9204 :::* LISTEN 18730/haproxy
tcp6 0 0 :::53 :::* LISTEN 18719/dnsmasq
tcp6 0 0 :::8149 :::* LISTEN 18730/haproxy
tcp6 0 0 :::22 :::* LISTEN 18818/haproxy
tcp6 0 0 ::1:8086 :::* LISTEN 18818/haproxy
tcp6 0 0 ::1:8087 :::* LISTEN 18730/haproxy
tcp6 0 0 :::1336 :::* LISTEN 18958/nginx
tcp6 0 0 :::5208 :::* LISTEN 18730/haproxy
tcp6 0 0 ::1:1337 :::* LISTEN 18730/haproxy
tcp6 0 0 :::8090 :::* LISTEN 18958/nginx
tcp6 0 0 :::122 :::* LISTEN 3176/sshd
tcp6 0 0 :::3002 :::* LISTEN 28599/longpolld
tcp6 0 0 :::5115 :::* LISTEN 18958/nginx
tcp6 0 0 ::1:8091 :::* LISTEN 18730/haproxy
tcp6 0 0 :::443 :::* LISTEN 18818/haproxy
tcp6 0 0 :::8443 :::* LISTEN 18818/haproxy
tcp6 0 0 ::1:8000 :::* LISTEN 22952/python
tcp6 0 0 :::8001 :::* LISTEN 21637/grafana-serve
tcp6 0 0 ::1:8002 :::* LISTEN 18730/haproxy
tcp6 0 0 ::1:4004 :::* LISTEN 18730/haproxy
tcp6 0 0 ::1:4005 :::* LISTEN 18730/haproxy
tcp6 0 0 :::4486 :::* LISTEN 20768/ruby
tcp6 0 0 ::1:4327 :::* LISTEN 18958/nginx
tcp6 0 0 :::9000 :::* LISTEN 19953/git-daemon
tcp6 0 0 ::1:4328 :::* LISTEN 18958/nginx
tcp6 0 0 :::3306 :::* LISTEN 21489/mysqld
tcp6 0 0 :::9418 :::* LISTEN 18818/haproxy
tcp6 0 0 :::6379 :::* LISTEN 20415/redis-server
tcp6 0 0 :::11211 :::* LISTEN 19555/memcached
tcp6 0 0 ::1:3307 :::* LISTEN 18730/haproxy
tcp6 0 0 :::8300 :::* LISTEN 21895/consul
tcp6 0 0 ::1:9100 :::* LISTEN 18958/nginx
tcp6 0 0 ::1:3308 :::* LISTEN 18730/haproxy
tcp6 0 0 ::1:6380 :::* LISTEN 18730/haproxy
tcp6 0 0 :::8301 :::* LISTEN 21895/consul
tcp6 0 0 :::9101 :::* LISTEN 18958/nginx
tcp6 0 0 :::8686 :::* LISTEN 29825/gpgverify
tcp6 0 0 :::8302 :::* LISTEN 21895/consul
tcp6 0 0 :::9102 :::* LISTEN 18958/nginx
tcp6 0 0 :::9200 :::* LISTEN 19612/java
tcp6 0 0 :::80 :::* LISTEN 18818/haproxy
tcp6 0 0 :::8080 :::* LISTEN 18818/haproxy
tcp6 0 0 :::9105 :::* LISTEN 18958/nginx
tcp6 0 0 ::1:9201 :::* LISTEN 18730/haproxy
tcp6 0 0 ::1:8082 :::* LISTEN 18958/nginx
udp 0 0 0.0.0.0:8125 0.0.0.0:* 19698/collectd
udp 0 0 0.0.0.0:24680 0.0.0.0:* 30340/s, 0ms avg
udp 0 0 127.0.0.1:8600 0.0.0.0:* 21895/consul
udp 0 0 0.0.0.0:44243 0.0.0.0:* 30336/s, 29ms avg
udp 0 0 0.0.0.0:53 0.0.0.0:* 18719/dnsmasq
udp 0 0 0.0.0.0:68 0.0.0.0:* 961/dhclient
udp 0 0 0.0.0.0:123 0.0.0.0:* 19001/chronyd
udp 0 0 0.0.0.0:323 0.0.0.0:* 19001/chronyd
udp6 0 0 :::8301 :::* 21895/consul
udp6 0 0 :::8302 :::* 21895/consul
udp6 0 0 :::53 :::* 18719/dnsmasq
udp6 0 0 :::123 :::* 19001/chronyd
udp6 0 0 :::323 :::* 19001/chronyd
root@github-server:~#
